银浆

料号:01H-1805

规格书

产品规格书/Specification



产品/product:

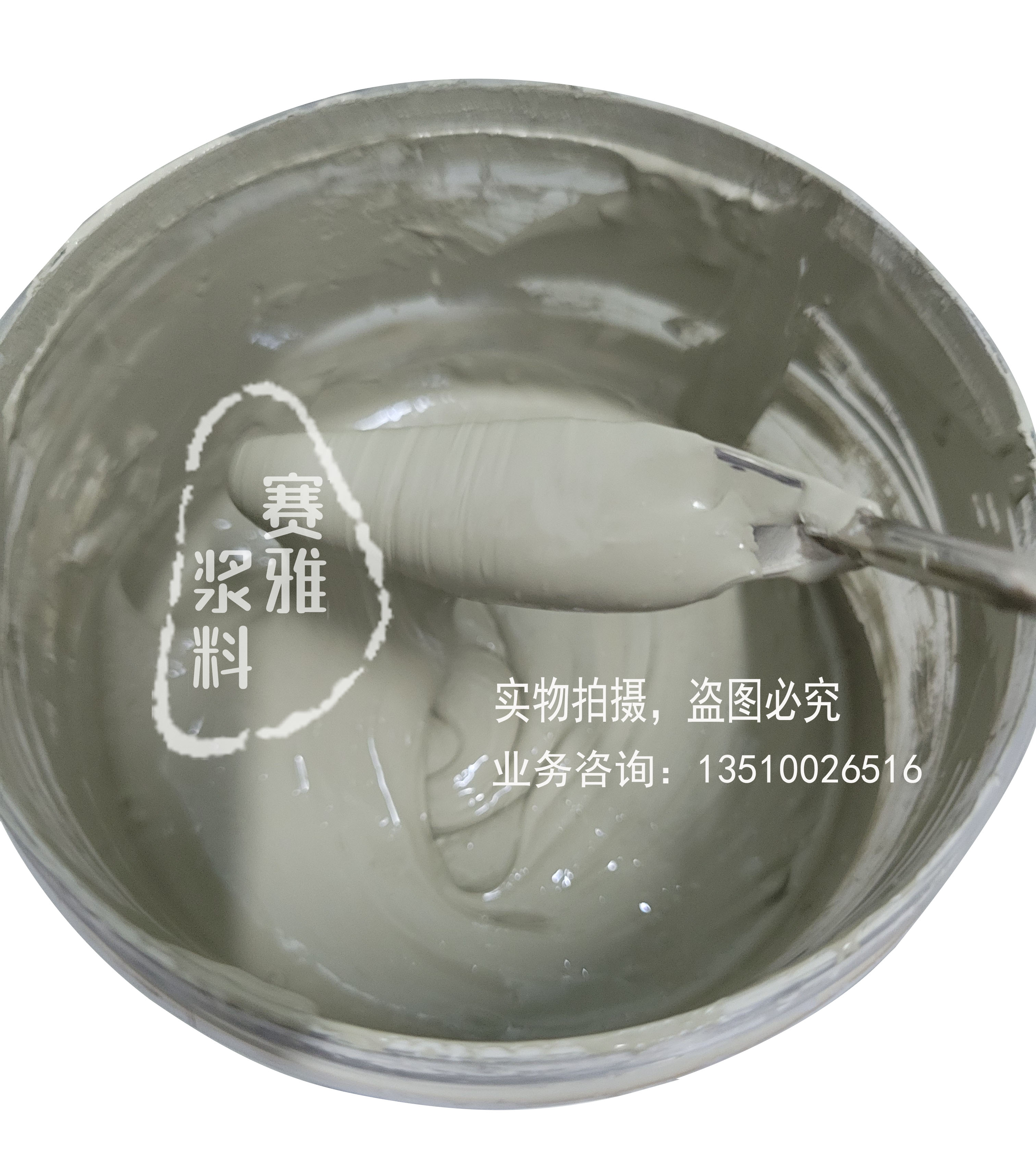

导电银浆/ Silver paste

料号/Part number:

01H-1805



适用范围/Application:

此产品适用于氧化铝陶瓷类产品电极使用

Suitable for Alumina ceramic productsthick film circuit electrode.

使用条件/Operating conditions

基材

Substrate

氧化铝陶瓷

Alumina ceramic

印刷

Printing

200-300目丝网印刷

200-300 mesh stainless screen

流平

Levelling

5-15min minutes at room temperature

室温下流平5-15分钟(时间根据流平的实际情况决定)。

干燥

Drying

通风烘箱烘烤100-150℃,10-15分钟

(空考温度低于300℃,可根据烘烤的实际情况决定烘烤时间。)

100-150  10-15 min

烧结

Firing Condition

隧道炉空气气氛下烧结,峰值850±10(推荐值),9-11分钟。

(可根据实际需要,烧结范围可在780-850℃内调节,但峰值温度时间必须10分钟。)

Atmospheric firing in belt furnace with peak time of 9-11 Minutes at 850±10

Thinner

ST-1000



性能/Characteristics

1. 浆料性能/Paste Characteristics

性能Characteristic

标准Standard

测试方法及条件

Test method and conditions

1

Fineness

5μm

FOG test

2

Viscosity

80-280Pa.s

Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1



Brookfield HBT(博利飞)粘度计, 转子SC4-14/6R), 10rpm, 25±1℃

粘度可根据用户实际需要调节。



2. 烧结后特性/Characteristics after firing

1烧结条件下,膜厚8-12mm Check fired film produced under the conditions specified in 1, (Film thickness is 8-12mm.)



特性

Characteristics

Standard

标准

测试方法和条件

Test method and conditions

3

Resistivity

方阻



6mΩ/□

Test pattern 0.6mm×60mm

测试图形0.6mm×60mm



4

Adhesion strength

附着力







Peel Test: 0.5mmφ Tin plated Cu wire soldered on  2mm×2mm Pad.

0.5mmφ锡浸铜线,焊接面积2mm×2mm

Solder: 96.5Sn/0.5Cu Mildly activated flux used.

焊料:96.5Sn/0.5Cu

Initial

初始附着力

43.2N



Ageing

老化附着力

24.6N

Ageing: 150℃×24hrs

老化条件:150℃,24小时



保存条件,有效期/Storage condition and Term of validity

产品应在5-25℃的环境温度下密封储存,有效期为产品发货之日起1年。

The product shall be guaranteed for 1 year after shipping date, keep tightly under at 5-25



包装方式/Packaging method

标准包装,1000g/, 样品可提供200克小罐包装

Standard package 1000g/canif you need sample to test, available 200g with small package.
